ARES-Modular Linear Recessed Light

ARES ALYCE, modular linear recessed light, only the luminous side of the lamp can be seen, environmental protection, energy saving beautiful, perfect integration.

The lamp body of the ARES ALYCE is arranged in the ceiling, and its step-shaped clamping part is clamped and fixed with the lower end of the bracket of the ceiling. The outer peripheral side of the lamp body is fixed on the upper end of the bracket of the ceiling. The step-type clamping part forms a preliminary clamping connection with the ceiling bracket, So the panel is flush with the ceiling, perfectly embedded, beautiful and practical.

Compared with common linear recessed light, ARES ALYCE provides architects designers with consistent linear design with replaceable modular light source. Multiple sizes 200MM/300MM/600MM/900MM/1200MM/1500M to meet various application needs. Flush integration into ceiling system for perfect visual effect. Module design for extremely easy replacement and maintenance.

ARES ALYCE is available in a number of different versions, all product versions are available as individual and system luminaires. Linear linkable and electrical linkable replaceable module, UGR<19 with lens solutions, high lumens eff. up to 135lm/w.

A utility new type recessed ceiling panel light, flush integration into ceiling system for perfect visual effect. ARES ALYCE available in a number of different optics, like 30D, 60D, 80D, 90D, 120D, all product versions are available as individual.

ARES ALYCE is also available as a continuous light line with through wire integrated. The recessed linear lights can be freely embedded, and the redundant light bodies are concealed between the laminates, creating a sense of space atmosphere with rhythmic light and shapes.

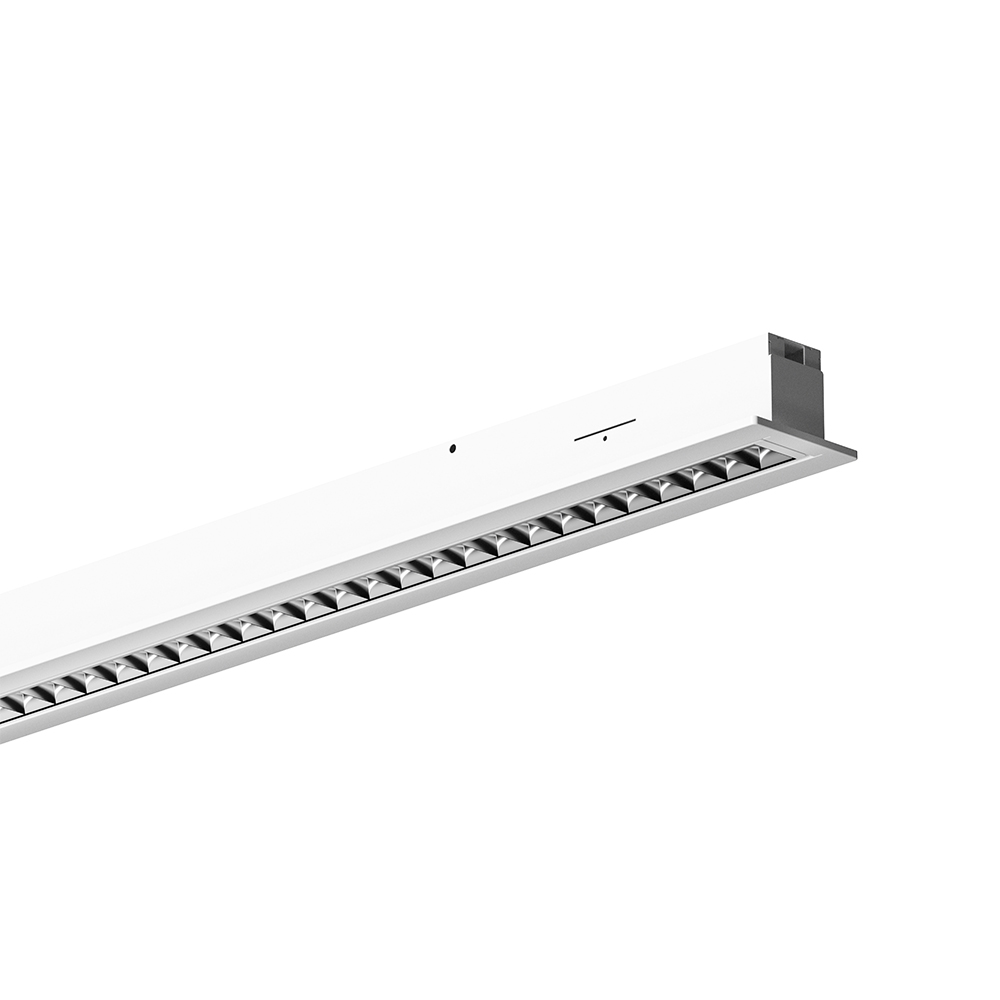

ARES 100

ARES 100

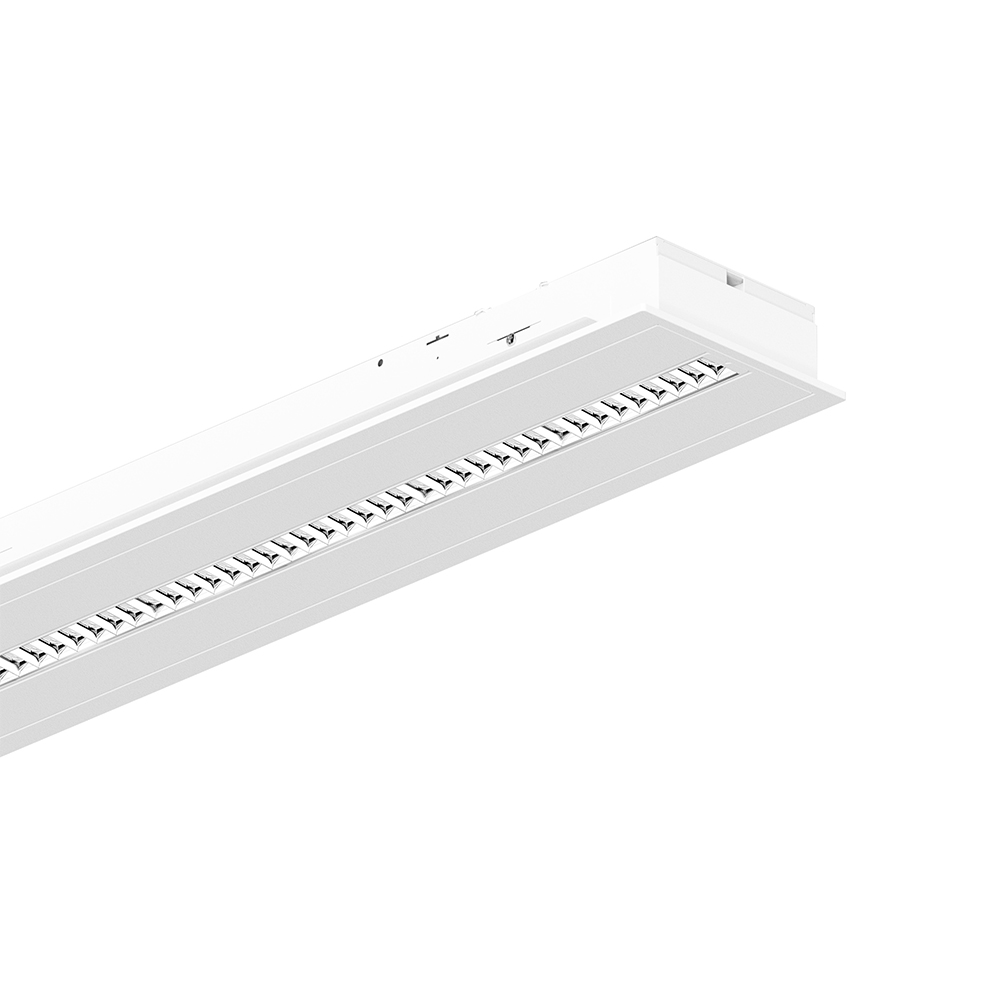

ARES 200

ARES 200

General Data

Dimension

 1497x84x57mm, 1197x84x57 mm

Material

 Aluminum

Finish

 White, Black, powder painting

Protection rating

 IP20

Lifespan

 54000 hours (L90B50)

Warranty

 5 years

Certificates

 TUV ENEC, CB, CE, VDE, ROHS

Technical Data

Working voltage

 220~240V AC

Operating Frequency

 50/60Hz

Wattage

 26~56W, with dip switch

Power factor

 0.95

Light source

 LED SMD2835

CRI

 Ra>80, 90 for optional

Color tolerance

 SCDM<3

Luminous efficacy

 145lm/w

Color temperature

 3000K, 4000K, 5000K, 5700K, 6500K

Beam angel

 Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser, 80° UGR<19, 60° UGR<16

Dimming

 Non dimmable, DALI

Diffuser

Diffuser

Lens optics

Lens optics

UGR 16

UGR 16

UGR 19

UGR 19

General Data

Dimension

 564x37x37.4mm, 1164 x37x37.4mm, 1464x37x37.4mm

Material

 Aluminum

Finish

 White, Black, powder painting

Protection rating

 IP20

Lifespan

 54000 hours (L90B50)

Warranty

 5 years

Certificates

 VDE, ROHS

Technical data

Electrical connection

 GR6D

Light source

 LED SMD2835

CRI

 Ra>80, 90 for optional

Color tolerance

 SCDM<3

Luminous efficacy

 145lm/w

Color temperature

 3000K, 4000K, 5000K, 5700K, 6500K

Beam angel

 Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser, 80° UGR<19, 60° UGR<16
