LITA-Linear track light UGR 19

LITA create a new idea of track lighting for retail space with its driver in track design. Its super slim design without driver box exposed realize the perfect combination between track rail and luminaire. In addition to its flexibility on installation and diverse optics, LITA lead a new trend for track lighting. LITA innovatively combine with super slim lamp body and in-track driver. When install the light, the entire LED driver can be put into the track rail, thanks to the innovative design of complete LED driver and track adapter, only 12mm height outside after installation.
Unlike the low voltage magnetic track light, LITA works with standard 220V 3 phases track rail, we also test with most popular brands track rail which we buy from Europe, like Global, Eutrac, Staff, Ivela, Unipro, Stucchi, Erco to achieve perfect compatibility.

• LITA integrates electronic phase dip switch, it is easier to switch each phase L1, L2, L3

• integrates dip switchable power from 40 to 64W for 5 ft length, and 12 to 27W for 2 ft length. Optional power for different project application

• With special optical lens to have various lighting distribution. Asymmetric and symmetric 25 degree for shelf lighting or aisle lighting. 30, 60, 90 degree and 120 degree diffuser for different mounting height

• LITA has UGR below 19 version, with anti-glare reflector on surface of LEDs, the lamp enables wide distribution to 80 degree. And 150LM/w at 60 wattage meanwhile

• Thanks to flexible installing position on track rail, with available lamp length in 2ft, 4ft and 5ft, LITA can create many styles on application like standalone installation, seamless continuous installation, or combine with spot light for achieving general lighting and accent lighting

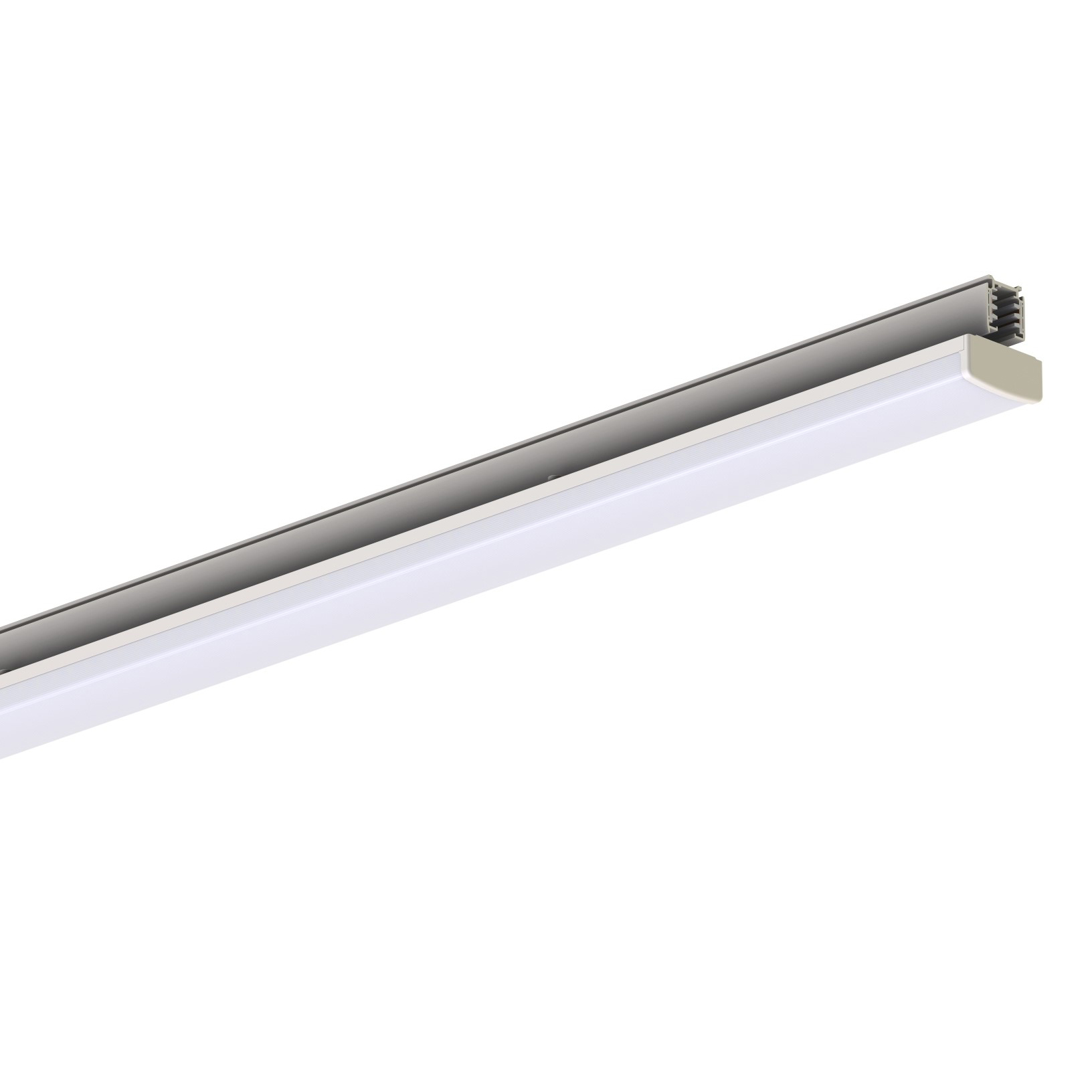

Linear track light diffuser

Linear Track Light Diffuser

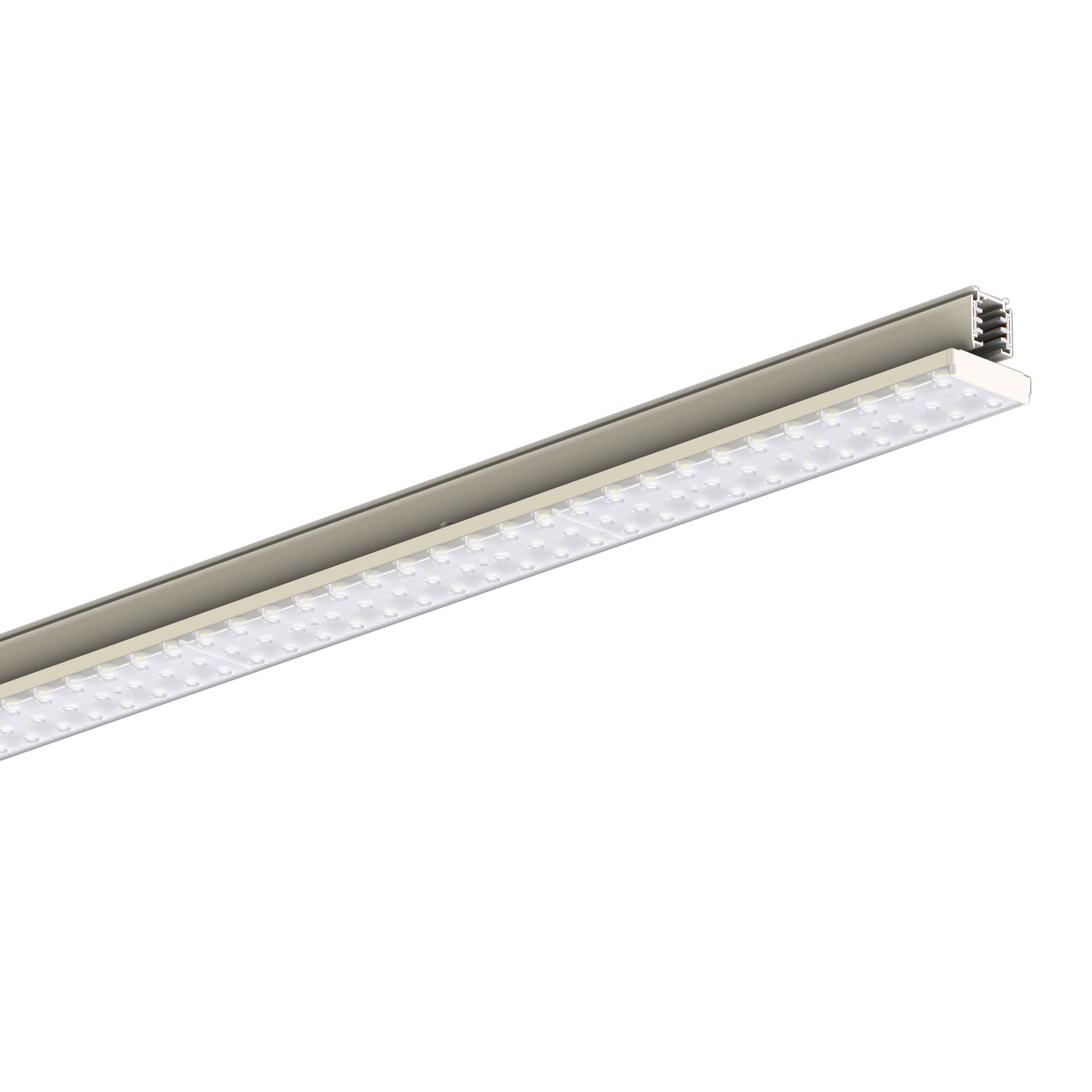

Linear track light lens optics

Linear Track Light Lens Optics

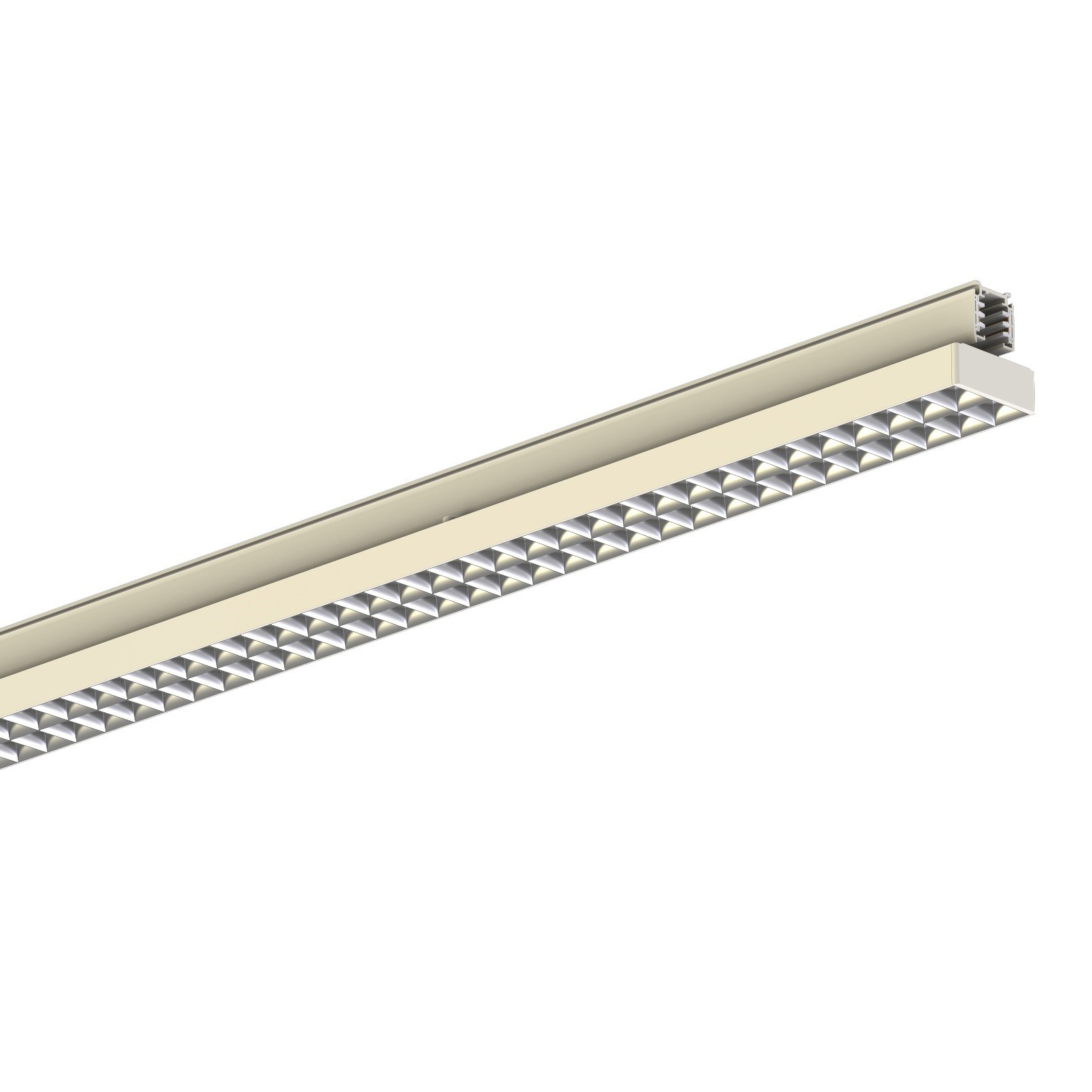

Linear track light UGR 19

Linear Track Light UGR19

General Data


 1504x64x54 mm, 1204x64x54 mm, 604x64x54 mm




 White, Black, powder painting

Protection rating



 54000 hours (L90B50)


 5 years



Technical Data

Working voltage

 220~240V AC

Operating Frequency



 39~64W, with dip switch

Power factor


Light source

 LED SMD2835


 Ra>80, 90 for optional

Color tolerance


Luminous efficacy


Color temperature

 3000K, 4000K, 5000K, 5700K, 6500K

Beam angel

 Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser, 80° UGR<19


 Non dimmable, DALI
