DREAMLINE-LED Trunking System

Dreamline is an innovative integrated lighting system that can be easily completed without any tools, from creating a lighting plan to implementing the lighting system installation.

The trunk pre-wired 2.5mm² copper cable, under the 3 phases circuit can be 140 LED modules at the same time, the maximum interconnection length can be up to 200 meters, but only need to wire to AC cable once.

The LED module can integrate a variety of optical lenses for various mounting heights. Using high quality LED and brand LED driver, the module can easily maintain more than 5 years of light decay. Up to 13000LM@75W light output, maximum output up to 23000LM@130W.

Dreamline can also integrate other functional modules such as emergency module, track module, sensor module, EXIT module etc. It is widely application from the shelf lighting of small stores to the general lighting of large logistics centers, Dreamline everywhere.

Dreamline housing made by color coated steel sheet rolled by automatic equipment. With a life span up to 30 years, the system is economic, environmentally friendly and sustainable ideal lighting solution for commercial and industrial.
Lowest installation labor cost comparing with standalone light.

Qualified 2.5mm² copper cables can through by max 4000W wattage enables max Interconnection length up to 210 meters.
Diverse optics enable the light to the aisle or to the shelf as required in different applications. 30°/60°/90°/120°/DA25, UGR<19 optics are available.
Widely applications available in supermarket, warehouse, hall, factory, indoor stadium, logistics center etc such large open area.
convenient centralized control thanks to interconnection
Easy install or uninstall the led module to save maintenance cost
High efficiency up to 180lm/w.
Multiple mounting kits support ceiling surface, wall surface, pendant mounting
Independent components can be easily replaced the broken one, low maintenance cost
Constant Light Output (CLO) enables to maintain consistent lighting output during long lifespan
3 phase dip switch module to switch L1/L2/L3
Available integrate in emergency battery, motion sensor, wireless control

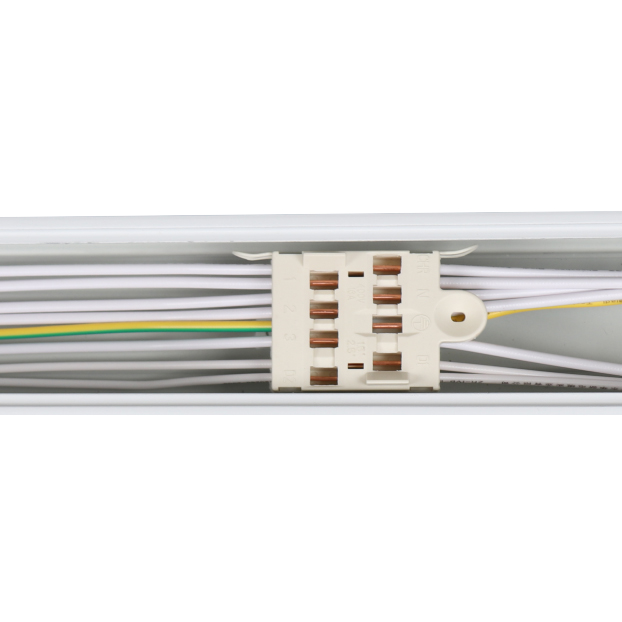

Trunk 5 wires

Trunk 5 Wires

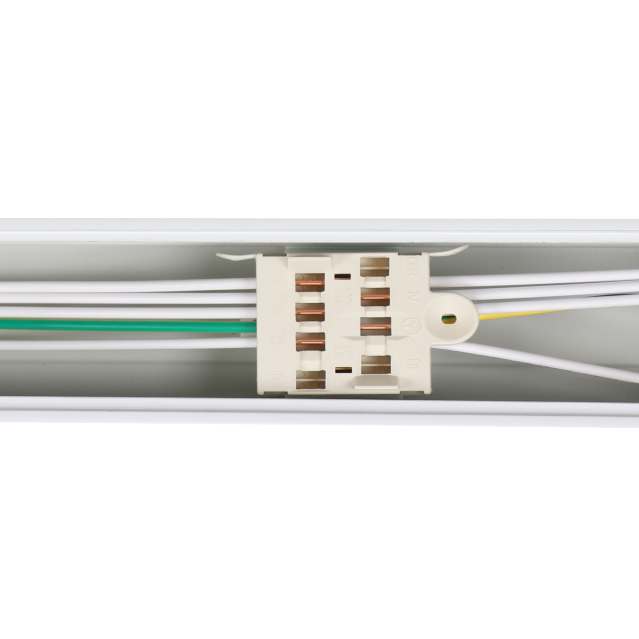

Trunk 8 wires

Trunk 8 Wires

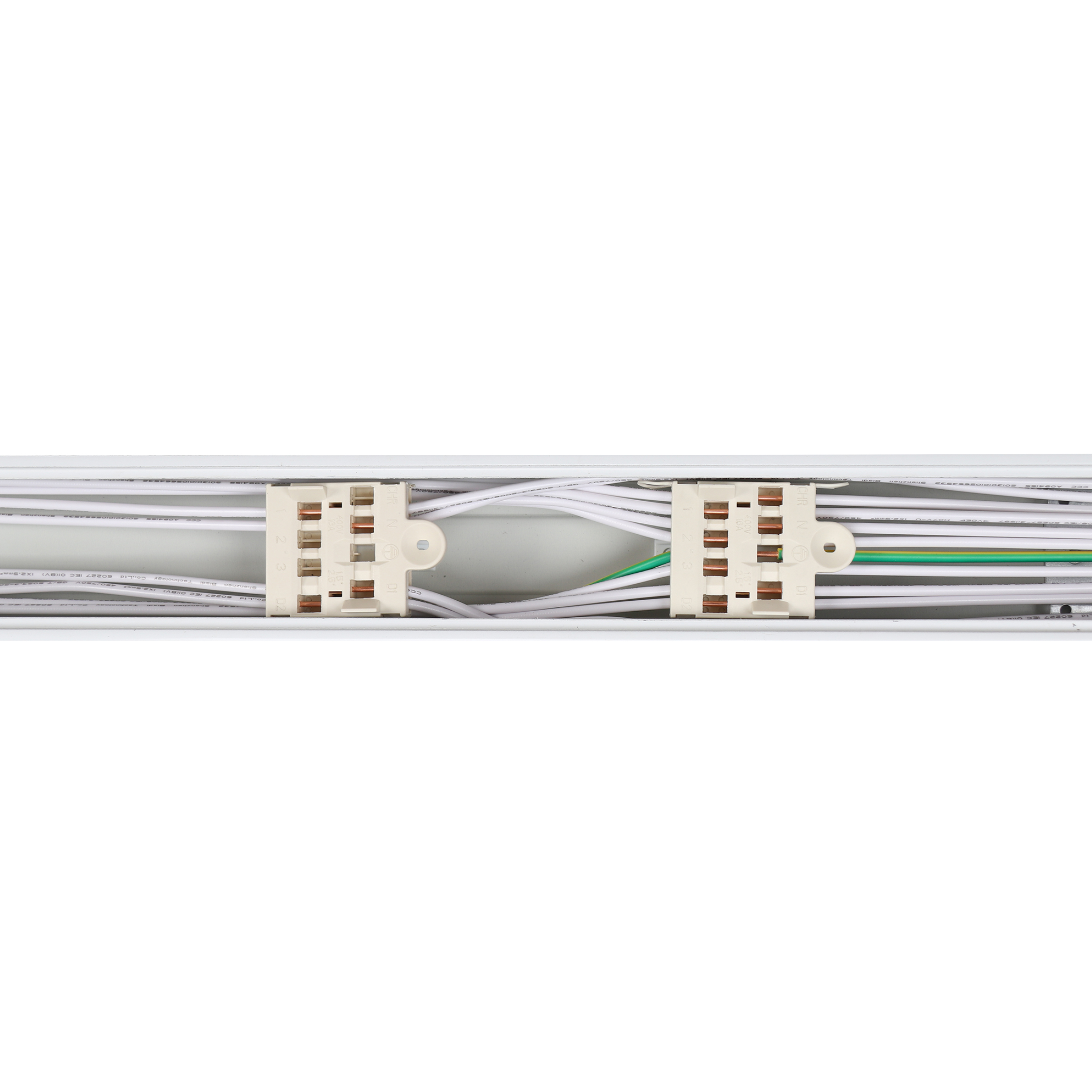

Trunk 12 wires

Trunk 12 Wires

General Data

Dimension

 1437x65x20 mm

Material

 Sheet steel

Finish

 White, black

Protection rating

 IP20, IP54

Lifespan

 54000 hours (L90B50)

Warranty

 5 years

Certificates

 TUV ENEC, CB, GS, CE, SAA, ROHS

Technical Data

Working voltage

220~240V AC

Operating Frequency

50/60Hz

Wattage

25~75W, with dip switch

Power factor

0.95

Light source

LED SMD2835

CRI

Ra>80, 90 for optional

Color tolerance

SCDM<5

Luminous efficacy

160lm/w

Color temperature

3000K, 4000K, 5000K, 5700K, 6500K

Beam angel

Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser

Dimming

Non dimmable, 1-10V, DALI

LED module diffuser

LED module diffuser

LED module lens optics

LED module lens optics

General Data

Dimension

 1437x65x20 mm

Material

 Sheet steel

Finish

 White, black

Protection rating

 IP20, IP54

Lifespan

 54000 hours (L90B50)

Warranty

 5 years

Certificates

 TUV ENEC, CB, GS, CE, SAA, ROHS

Technical data

Working voltage

 220~240V AC

Operating Frequency

 50/60Hz

Wattage

 25~75W, with dip switch

Power factor

 0.95

Light source

 LED SMD2835

CRI

 Ra>80, 90 for optional

Color tolerance

 SCDM<5

Luminous efficacy

 160lm/w

Color temperature

 3000K, 4000K, 5000K, 5700K, 6500K

Beam angel

 Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser

Dimming

 Non dimmable, 1-10V, DALI

Product Parameters

Item
Description
Surface ceiling fixing kits

Surface ceiling fixing kits

Every 2.5M trunk requires 2 pcs

Steel cable suspension kits

Steel cable suspension kits

Every 2.5M trunk requires 2 pcs

Chain suspension kits

Chain suspension kits

Every 2.5M trunk requires 2 pcs

Input cable protector

Input cable protector

1 pcs requires for 5 wires trunk
2 pcs requires for 8 wires trunk

Input end cap

Input end cap

1 unit required per line

Steel end box

Steel end box

1 unit required per line

Terminal feedin box

Terminal feedin box

For 220V power cable feed in

AC input terminal

AC input terminal

For 220V power cable feed in

PC blank cover

PC blank cover

For 1.5M trunk

AL blank cover

AL blank cover

For 1.5M trunk
