EOS ALYCE-Modular Panel Light

EOS ALYCE may become a next generation panel light by creating a modular louver design light source for the luminaire.

Compared to the traditional panel light with side lit solution integrating the light source and luminaire as a whole. EOS ALYCE is the first-class option for offices and education by providing excellent glare control optics with low UGR index down to 16 and high lumen efficiency of 145lm/w. EOS ALYCE can be installed in various ceiling types, for traditional ceiling with T bar, the luminaires are simply lay in, in case of concealed carriers or sawn ceiling cut out, a mounting kit can be provided for facilitates installation.

EOS ALYCE is the star product of ALYCE family. Different from common panel lights, EOS ALYCE is based on the design concept of photoelectric separation. The panel size can be changed according to specific project requirements, and the length of the light source can also be customized, making it easy to use in most common ceiling plasterboard. The fixture is formed by rolling 0.6mm thick galvanized color-coated steel plate, which guarantees a service life of up to 20 years.

• Standard light source is in conformity of Zhaga Book 14 and using GR6D-15 connection, which will be next standardization trend in Europe

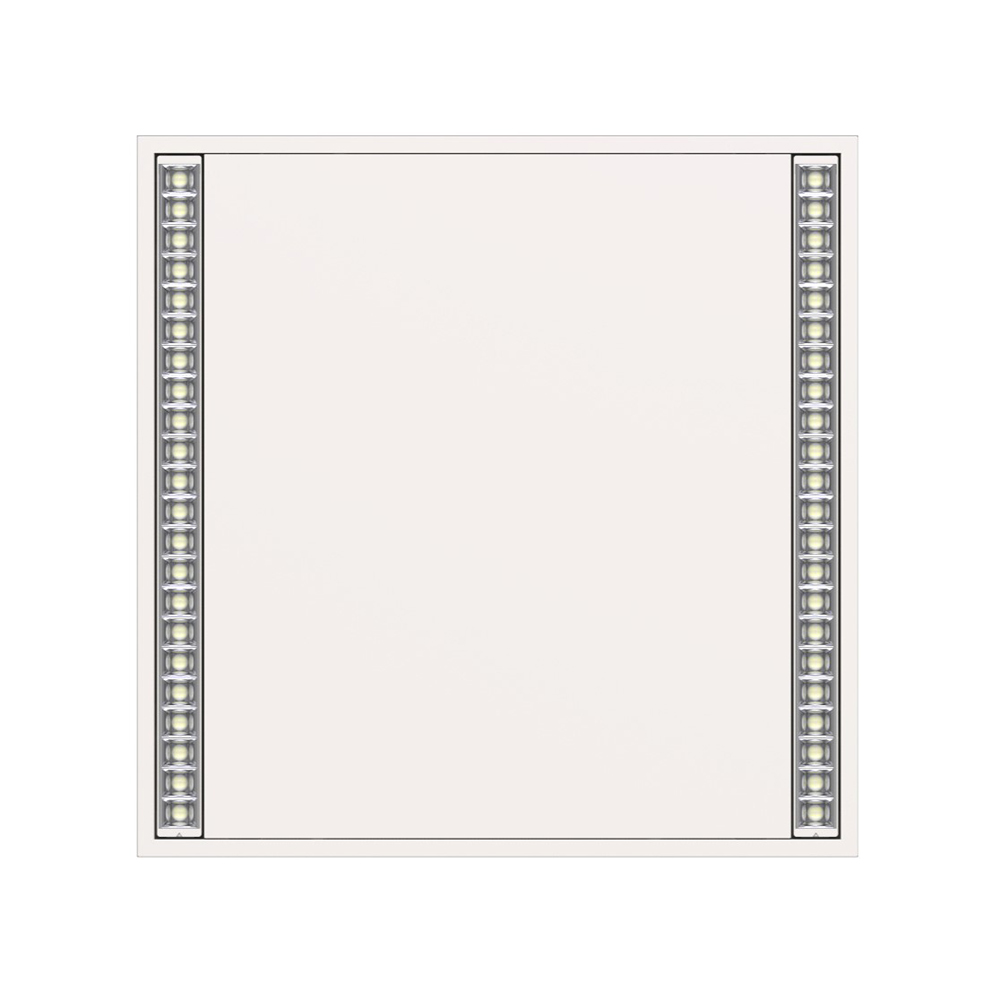

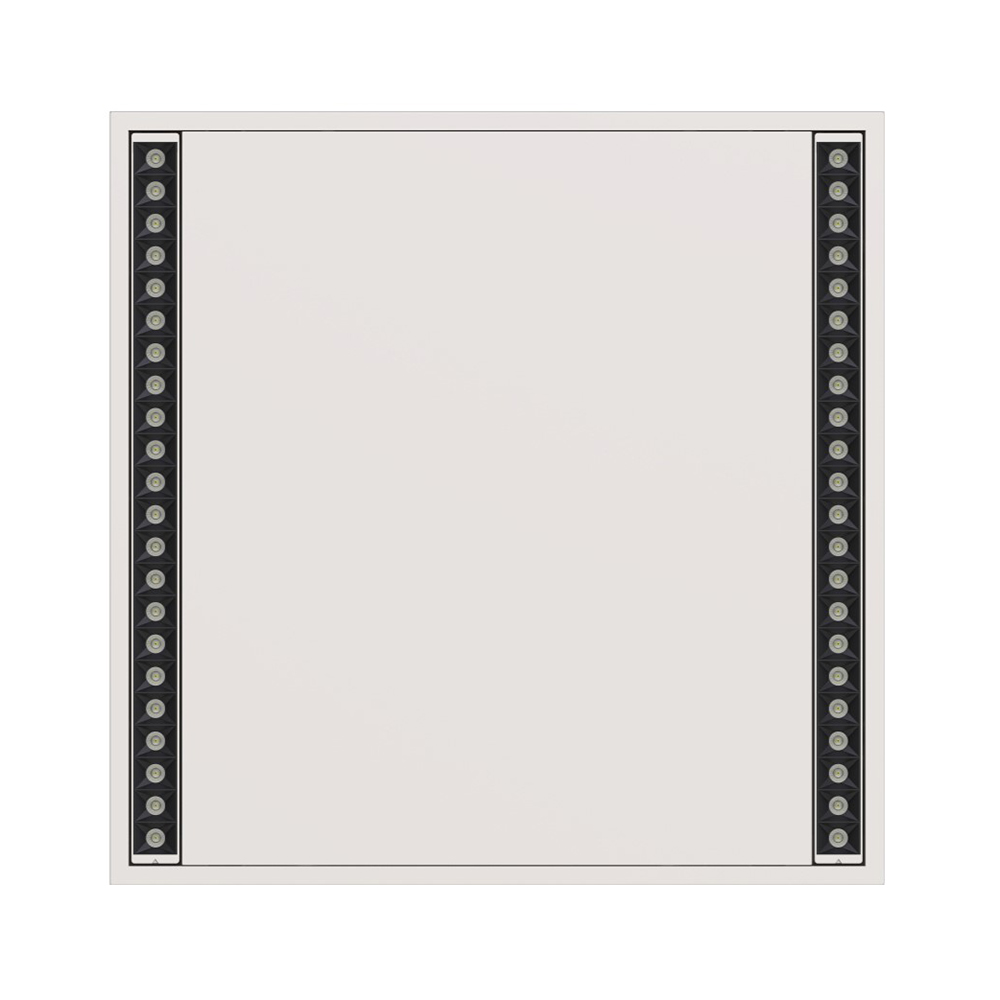

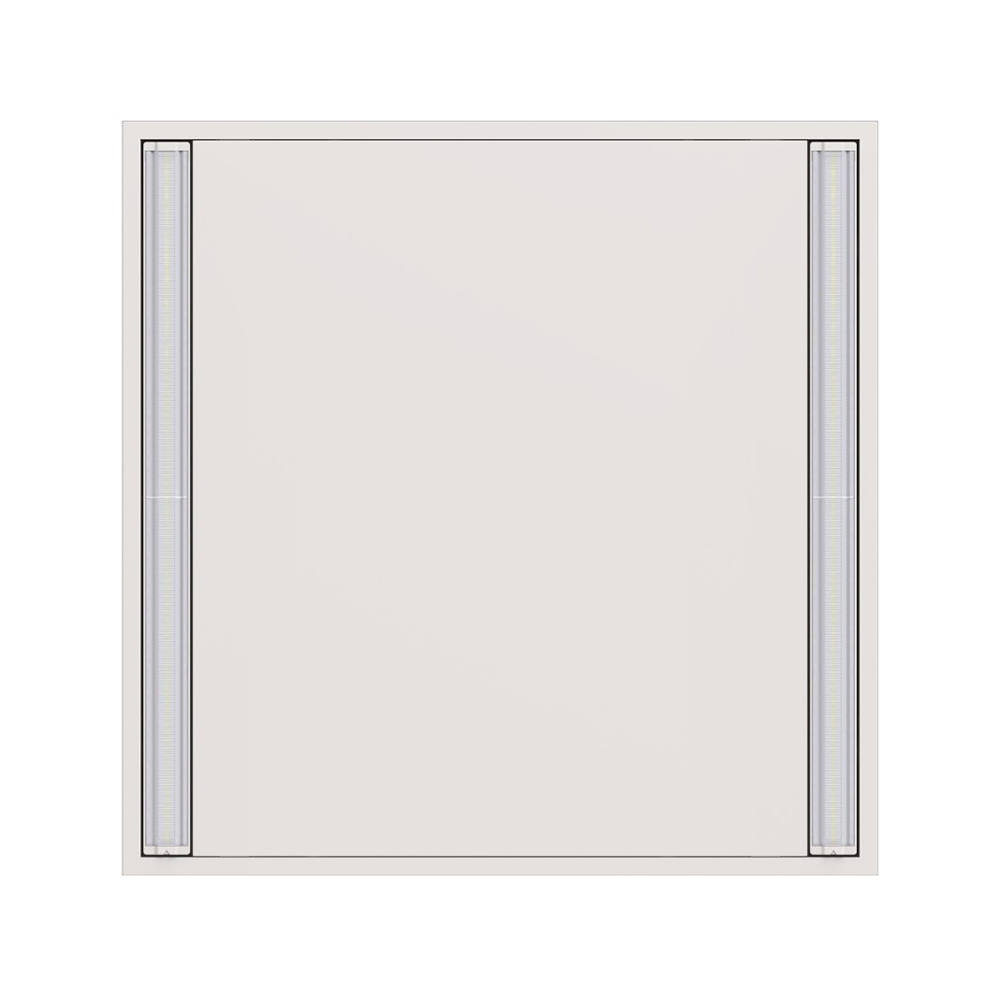

•UGR<19 and 135lm/W efficacy as standard optics; UGR<16 and Opal diffuser for options

• VS Driver Power adjustable with DIP switch to 26W/31W/37W/42W by default

• CCT 3000K, 4000K, 5000K adjustable by DIP switch for option

•Freely exchange the light source without tools

•Warranty 20 years for fixtures, 5 years for standard LED linear module

•Thin and beautiful appearance
