Diffuser

Lens optics

UGR 16

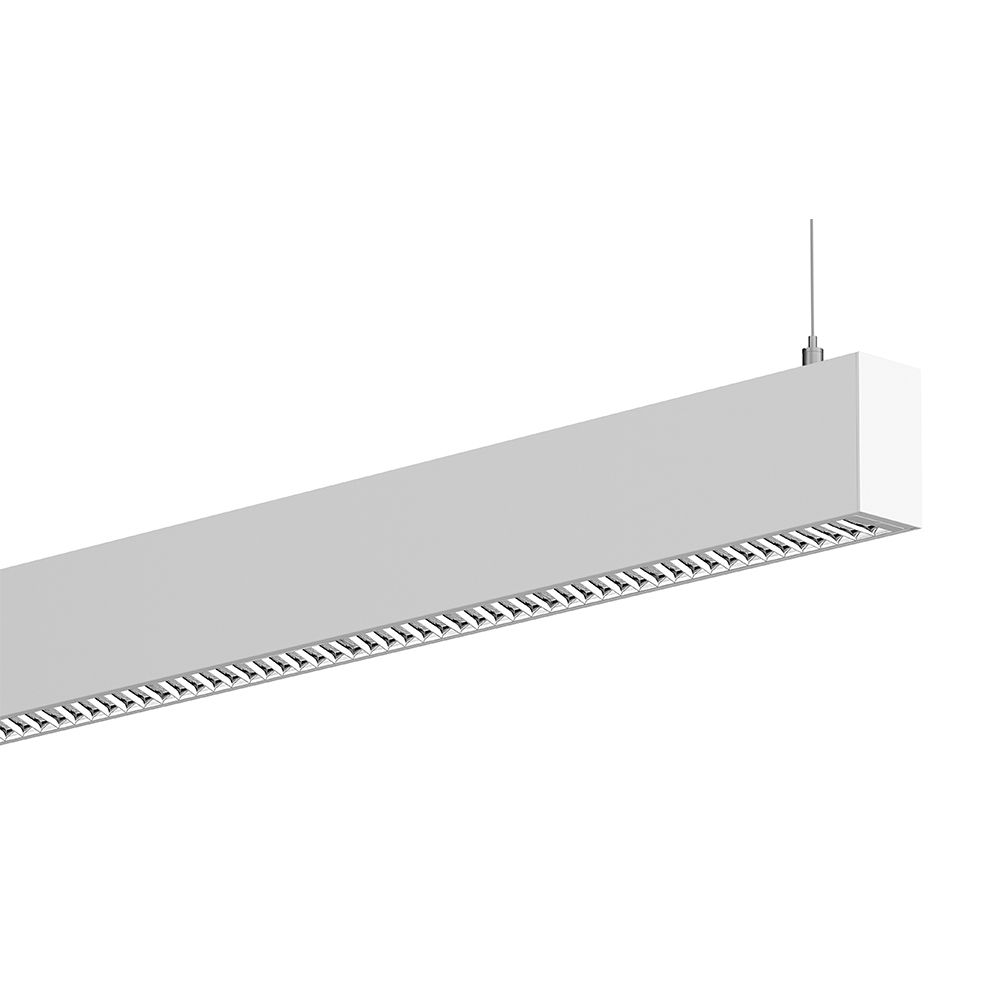

HERA ALYCE create a contemporary minimalism impression in the room with its slim and unobtrusive design. Its perfect ratio of direct and indirect lighting up and down without reflected glare enhance people’s sense of well-being.
The modular design light source replaceable enables the lighting maintenance to be carried out with minimum effort and inconvenience. HERA ALYCE can be a suspended individual luminaire or a continuous row system. Extremely slim extruding Aluminum housing (48mm width) with elegant coating and delicate details processing, adopting replaceable GR6D module -Zhaga standard linear light source (VDE certificate) with 4 kinds of optics, HERA provides a really flexible, considerate and professional illumination for office and hospitality. At the same time, the innovation design of separated Light source and fixtures keeps you unique in the market. The elegant design can always provide a feeling of harmony with environment, whether HERA was installed by suspension or on surface.
Direct light will always provide high quality light for illumination, and indirect module provide strong light with wide beam angle to make the environment more brilliant, in this way, glare can be greatly decreased and users can enjoy the real high-quality light provided by HERA.
Distinctive features:
• Black and white color painting for options
• 1.2M and 1.5M, even more options of length are possible
• Standalone luminaire and continuous luminaire system available
• Suspension and ceiling mounting for installation
• GR6D module provides light direct & Indirect, direct only, at the same time provide easily replaceable various of optics; Lighting planners can design various of lighting solution by this range
• EPRAL compliance, light source modules with Energy Efficiency Class: D significant energy saving
• Easy replacement for GR6d light source modules, save your cost of maintenance of luminaire
• Intelligent control function can be integrated in HERA as requirements
• 5 Years warranty for all the parts
• CE compliance
Dimension |
1482x80x46mm, 1182x80x46 mm |
Material |
Aluminum |
Finish |
White, Black, powder painting |
Protection rating |
IP20 |
Lifespan |
54000 hours (L90B50) |
Warranty |
5 years |
Certificates |
TUV ENEC, CB, CE, VDE, ROHS |
Working voltage |
220~240V AC |
Operating Frequency |
50/60Hz |
Wattage |
Direct 50W/Indirect 40W, with dip switch |
Power factor |
0.95 |
Light source |
LED SMD2835 |
CRI |
Ra>80, 90 for optional |
Color tolerance |
SCDM<3 |
Luminous efficacy |
145lm/w |
Light direction |
direct light + indirect light |
Color temperature |
3000K, 4000K, 5000K, 5700K, 6500K |
Beam angel |
Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser, 80° UGR<19, 60° UGR<16 |
Dimming |
Non dimmable, DALI |
Dimension |
564x37x37.4mm, 1164 x37x37.4mm, 1464x37x37.4mm |
Material |
Aluminum |
Finish |
White, Black, powder painting |
Protection rating |
IP20 |
Lifespan |
54000 hours (L90B50) |
Warranty |
5 years |
Certificates |
VDE, ROHS |
Electrical connection |
GR6D |
Light source |
LED SMD2835 |
CRI |
Ra>80, 90 for optional |
Color tolerance |
SCDM<3 |
Luminous efficacy |
145lm/w |
Color temperature |
3000K, 4000K, 5000K, 5700K, 6500K |
Beam angel |
Asymmetric 25°, double asymmetric 25°, 30°, 60°, 90°, 120° diffuser, 80° UGR<19, 60° UGR<16 |
